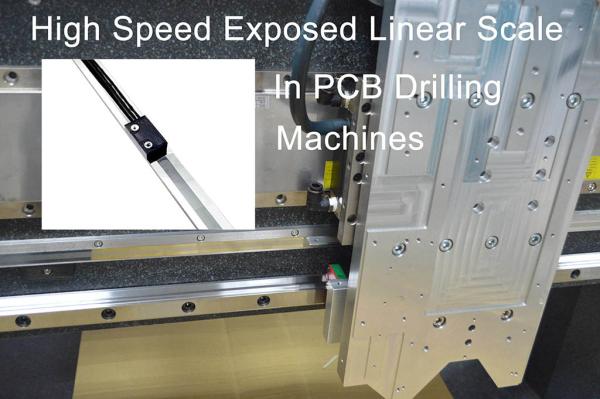

Speed Exposed Grating PCB Drilling Equipment Optical Linear Scale
Product Introduction
GS65 exposed linear scale is designed for high speed and high accuracy applications such as video measuring machines, PCB drilling machine, coordinate measuring machine, linear motors ... etc. GS65's unique non-contact compensated Phased Array refelective open grating measuring system offers high precision backlish free position readings.
GS65 High Accuracy Exposed Grating Scale Advantage
- Achieve the highest possible measuring repeatability that your mechanical structure is designed and built.
- Provide the best possible low speed high precision counting servo movement control for your machines or linear motor.
GS65 is one of the smallest grating scales in this planet, available in two types of minature reader head housing, which offering two different installation direction respectively, making your scale installation exteremely easy.
Standard resolution for GS65 is 0.02μm ( 20 nanometer ), maximum measuring speed up to 180m/min, acceleration up to 4G.
Product Specification
| Model | GS65 |
| Meas. Standard | 80 μm (0.08 mm) pitch grating glass |
| Meas. System | Reflective Phased Array Optics System |
| Reader Carriage | Non-Contact open grating carriage |
| Resolution | 0.02 μm ( 20 nanometer ) |
| Meas. Travel | 120mm | G1: Standard length: 120 mm, user cut on demand |
| 500mm | G2: Standard length: 500 mm, user cut on demand |
| 1000mm | G2: Standard length: 1000 mm, user cut on demand |
| 1200 - 3000mm | G3: Every 200 mm per specification |
| Accuracy | 50 - 500mm | ±3 μm / ±5 μm |
| 550 - 1000mm | ±5 μm / ±10 μm |
| 1200 - 3000mm | ±10 μm / m |
| Hysteresis | Included in accuracy |
| Max. Speed | 180 m / min |
| Supply | DC 5V ± 5% |
| Output Signal | CPE-bus serial data interface |
| Output Connector | DSUB 9 |
There are 3 choices of measurement accuracy in GS65, ±3 μm, ±5 μm, ±10 μm.
Installation
Thanks to the small reader head size, this makes your scale installation very easy and convenience.
More than that, there are two types of installation direction fixing of reader head housing available for your choice.
TYPE A
TYPE B
Grating Glass Dimension
| Glass Dimension | High(mm) | Thick(mm) | Meas. Travel(mm) |
| G1 | 6.2 | 1.0 | 120 |
| G2 | 12 | 2.0 | 500 / 1000 |
| G3 | 12 | 3.0 | 1200 - 3000 |
There are 3 types of grating glass dimensions in GS65 series, 6.2mm x 1 mm glass, 12 mm x 2 mm glass, and 12 mm x 3 mm glass.
Connector interface
DSUB 9PIN
| PIN | TTL |
| Signal | Cable |
| 1 | A- | Yellow |
| 2 | 0V | White |
| 3 | B- | Red |
| 4 | GND | Silver |
| 5 | R- | Black |
| 6 | A | Green |
| 7 | 5V | Brown |
| 8 | B | Blue |
| 9 | R | Grey |
