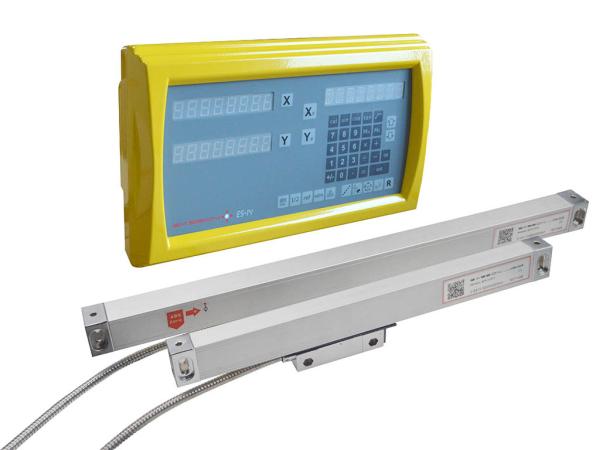

Yellow Shell LCD Milling Machine 2 Axis Digital Readout Unit
Packaging & Delivery
Single package size: 40x26x18 cm
Package Type: Carton box
Net weight: 2.5 kgs
Delivery:
| Quantity | 1-10 | 11-50 | 51-100 | ＞100 |
| Est. time ( days ) | 3 | 5 | 7 | 15 |
The ES-14 series is CE certified and is manufactured according to the TQM(Total Quality Management System). The
electronic boards comply with the RoHS standards.
Technical Specification
| Model | ES-14 |
| Axis number | 2 Axis |
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm |
| Signal Input | TTL |
| Power Supply | 110 V / 220 V |
| Net Weight (KGS) | 2.5 |
| Maximum input | 2 MB Hz |
| Operating temperature | 0℃ - 45℃ |
| Storage temperature | -40℃ - 55℃ |
| Relative humidity | ≤ 95% |
| Inputs | 3 Optical Ruler |
| EMC Standard | IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
EMC Testing equipment
To Ensure all Easson Digital Readout products can be pass the standard EMC specification, we have a complete set of EMC test esd immunity tester to test the EMC.
Different from others digital display manufacturers using switching power supply layout, Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC. The switching power supply are not as good as linear power transformer supply.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Aging Testing Room
All Easson Digital Readout System need to do the aging test, using three axis signal generator counting, make sure all couting reading correctly, high temperature test and load test for 72 hours before QC procedure.
Products Description
Digital Readout System
Basic parameters in the ES-14 are included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Axis Speed Display |
| Radius / Diameter |
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow | | | |
